HLER Exam room light
HLER

Healthcare exam rooms, ambulatory care facilities, dental care, physiotherapy, consulting rooms, paediatrics.

Combining an inner disk and outer ring, creating 3 modes in a choice of 3 CCT's to create calm ambient lighting and clear bright exam modes.

Developed with healthcare professionals to revolutionize exam room lighting. 3 modes available, giving up to 8,000 lm from the inner disk for accurate examination and 2,000 lm from the indirect ambient ring while the patient is waiting. Both inner and outer light sources can be used together to give up to 10,000 delivered lm.

Application Type	Ambulatory Care, Consulting Rooms, Dentist Offices, Exam Rooms, Healthcare, Outpatient, Pediatric Rooms, Physiotherapy, Recovery Rooms
Light Source	LED - Static
CCT / LED Color	3500 K, 4000 K, 5000 K
Control Platform	DC2DC Enabled, nLight AIR G2, nLight Wired
CRI	90
Environmental Listing	Damp Location, Dry Location
Lumens	2000 LM, 6000 LM, 8000 LM
Regulatory Listing	CSA, UL
Compliance Listing	BAA and BABA
Mounting Location	Ceiling
Voltage Rating	120-277, DC2DC 57VDC
Dimming Protocol	0-10V, DALI
Size	3FT
Shape	Round
Product Type	Surface Light
Series	HLER
Mounting Type	Flush

Product variations

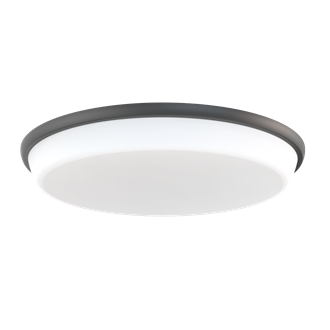

HLER MBKAM

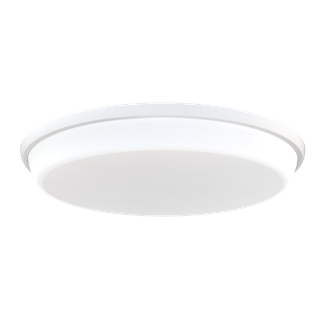

HLER MWAM

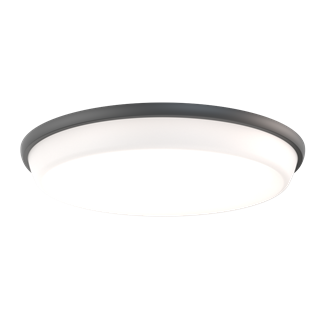

HLER DISK MBKAM

HLER DISK MWAM

HLER RING MBKAM

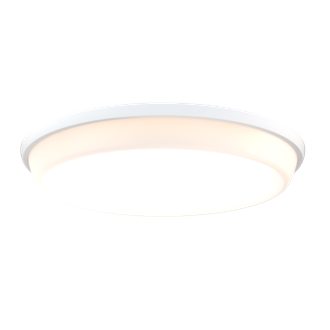

HLER RING MWAM

HLER MWAM FRONT

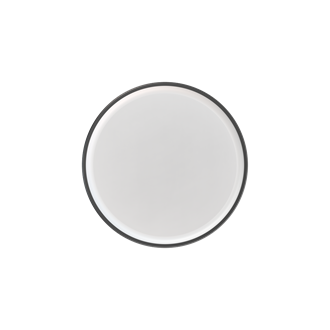

HLER MBKAM FRONT

Gallery

“Wise and humane management of the patient is the best safeguard against infection.”

Florence Nightingale - Notes on nursing, what it is and what it is not. Published 1859

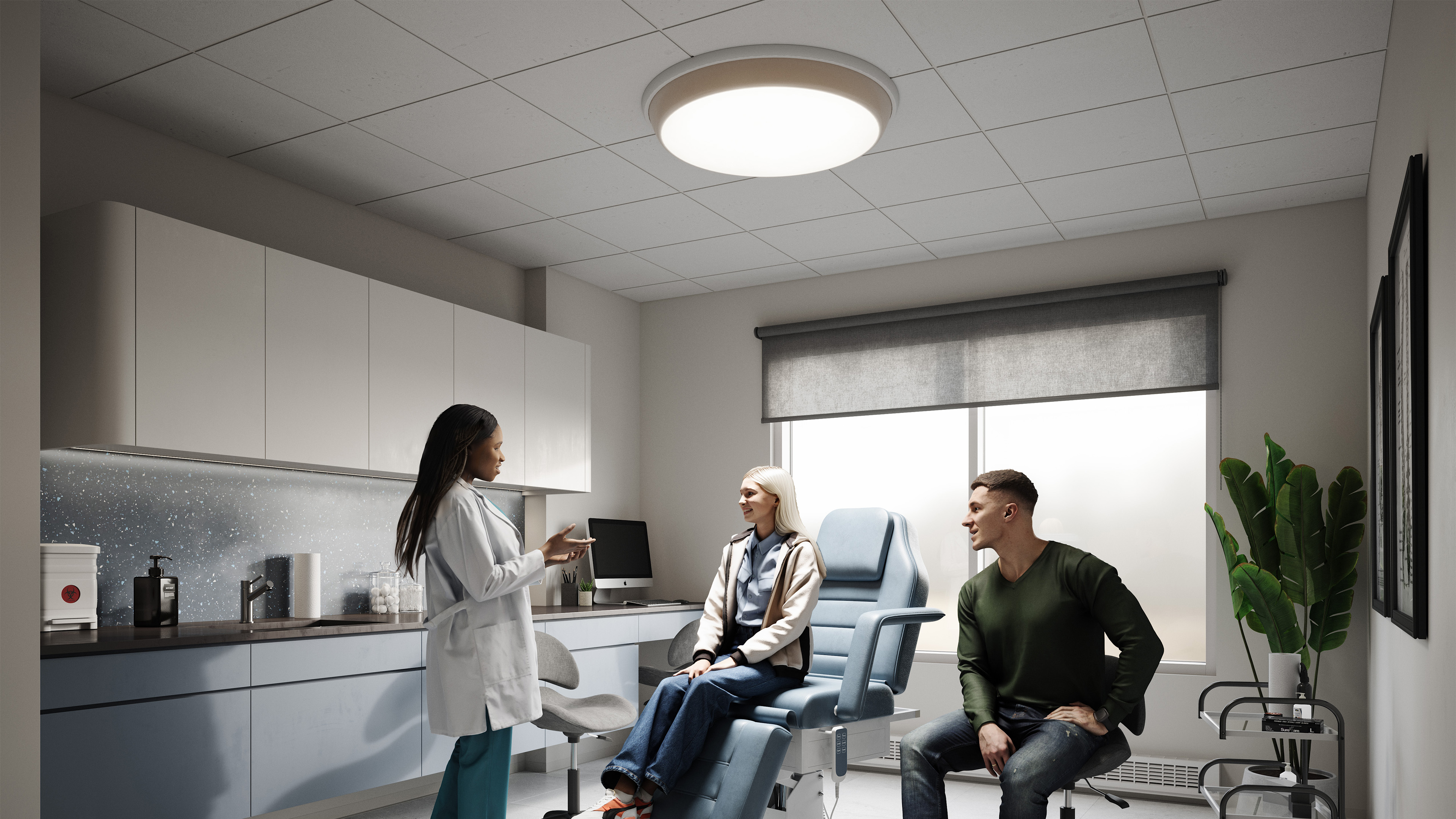

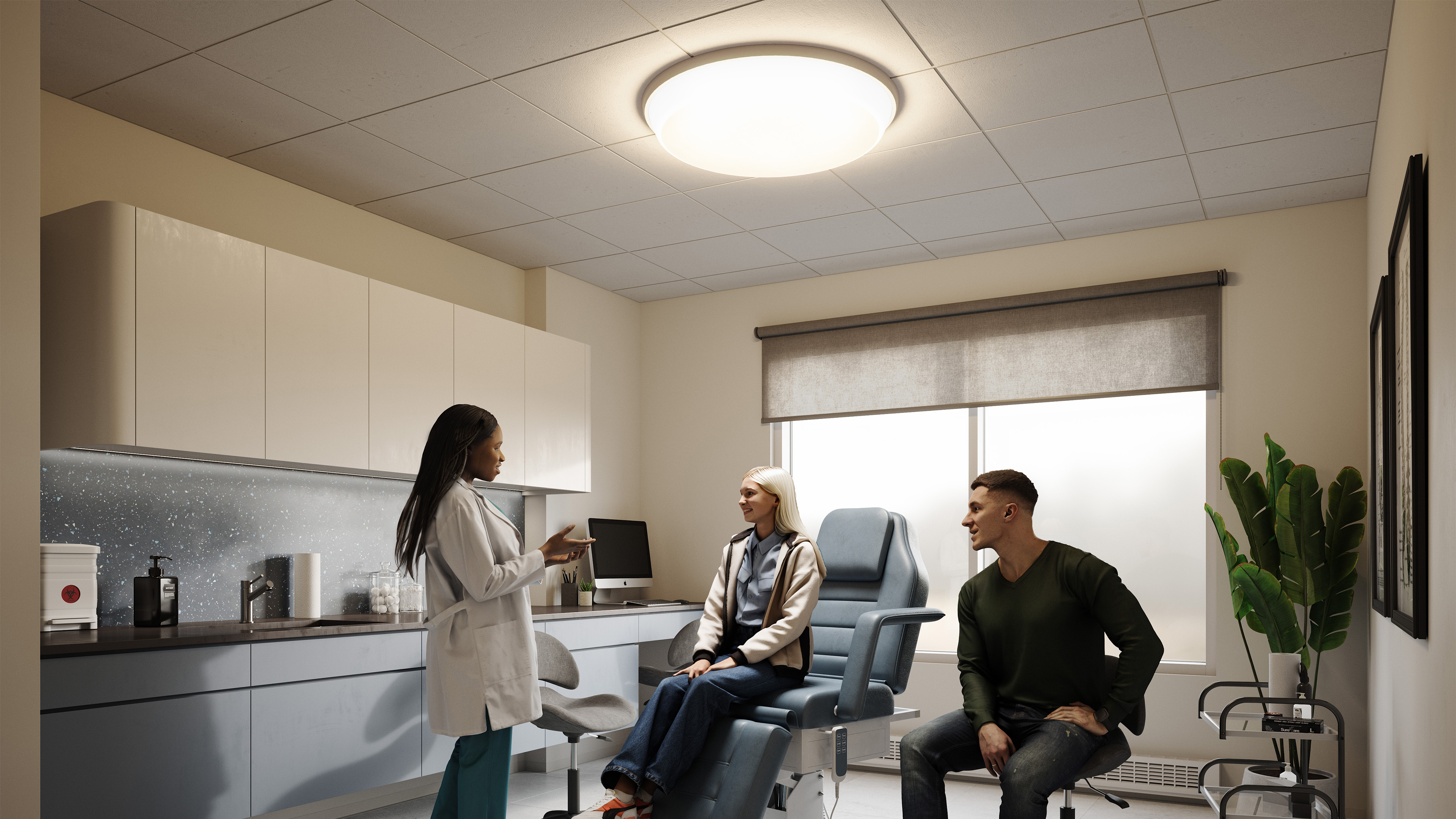

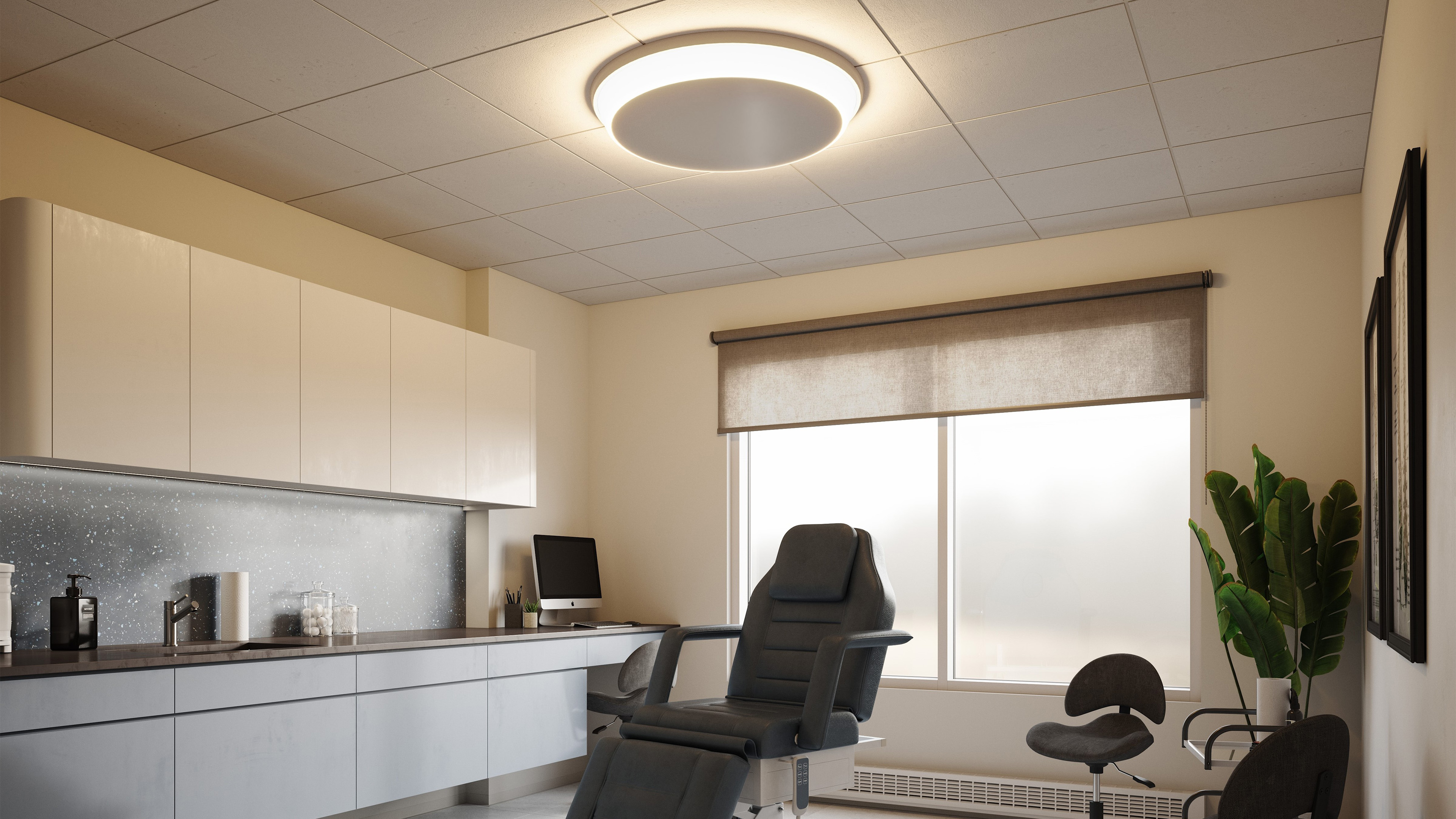

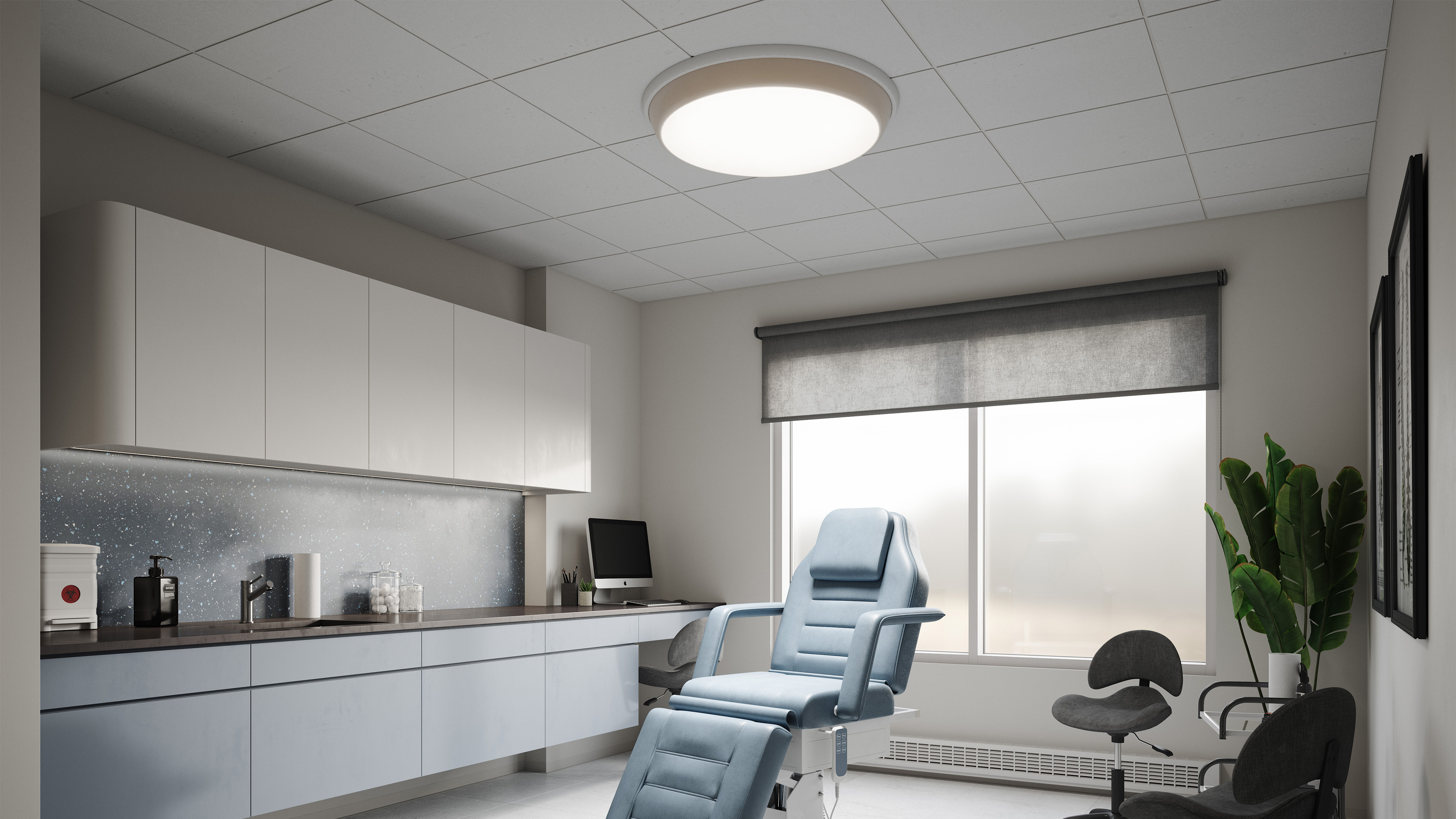

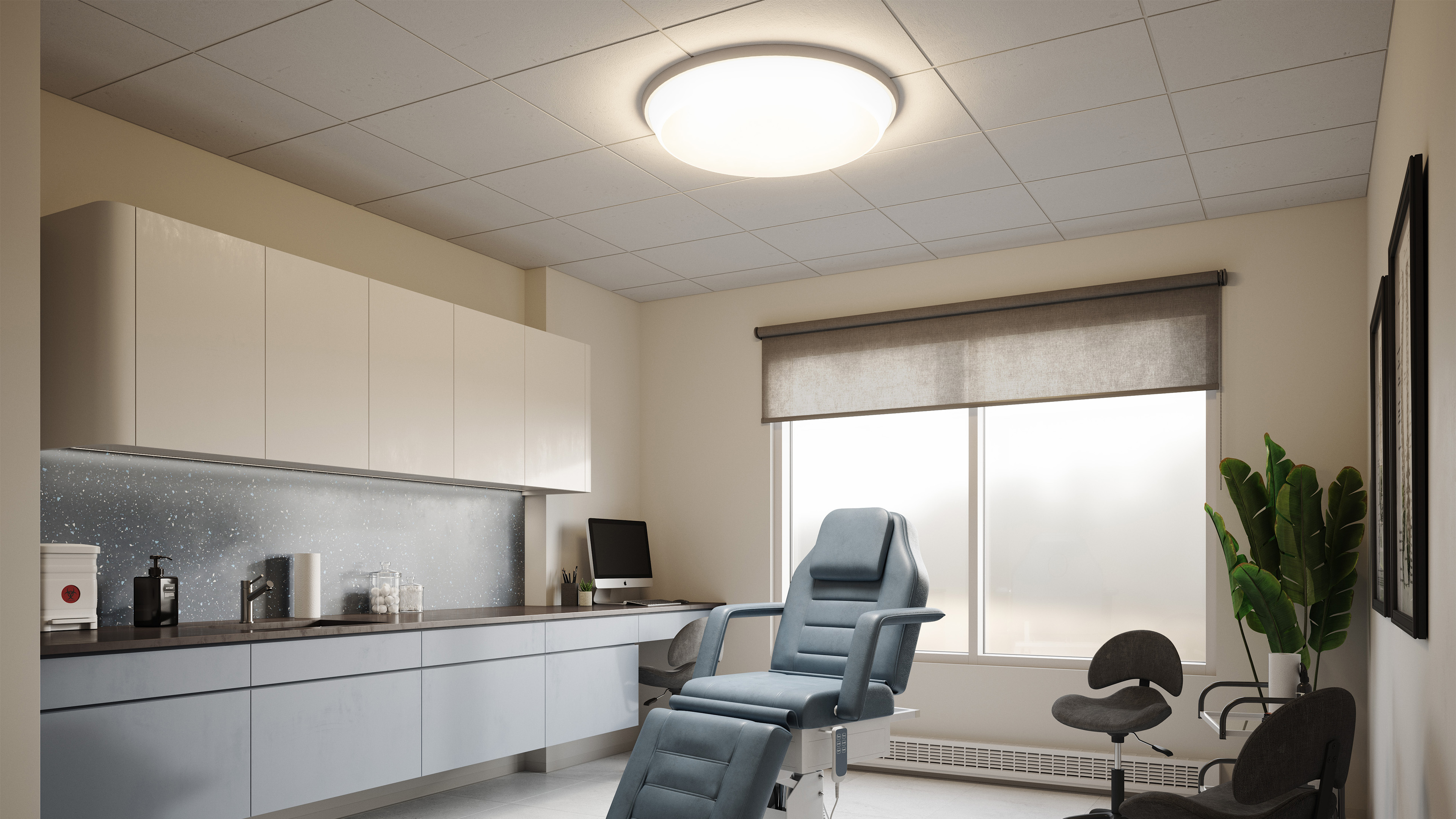

Nightingale™ HLER exam room fixture.

Developed with healthcare professionals to revolutionize exam room lighting. 3 modes available, giving up to 8,000 lumen from the inner disk for accurate examination and 2,000 lumen from the indirect ambient ring while the patient is resting. Both inner and outer light sources can be used together to give up to 10,000 delivered lumen.

An umbrella of light!

At 36" diameter the Nightingale™ HLER exam room light provides an umbrella of light that allows healthcare professionals to carry out accurate examinations. Mounting onto solid or grid ceilings with antimicrobial matte finish or RAL options.

Don't miss a thing with our newest and brightest HLER exam room light!

Combine the inner disk with the outer ring for our brightest exam mode. Inner disk available in three CCT options: 3500K, 4000K and 5000K and outer ring available 3000K, 3500K and 4000K. Use individually or or a combination of two. Create a warmer ambience for patient comfort and a cooler brighter, more effective one for examinations.

Freedom from the grid!

Get away from dull troffers and express your patient first philosophy!!

“Whatever a patient can
do for himself, it is
better, i.e. less anxiety,

for him to
do for himself.”

Florence Nightingale

Notes on nursing, what it is and what it is not. Published 1859

Controls

This luminaire is designed to work with nLight® and nLightAIR® networked digital lighting controls. They are easy to use, easy to install and help save energy. Find out more here.
